Categories of Hexagonal Mesh

Hexagonal mesh: also called twisted wire mesh, chicken mesh, soft edge mesh, insulation mesh.

According to the weaving method, it can be divided into positive twist hexagonal wire mesh, reverse twist hexagonal wire mesh, positive and reverse twist hexagonal wire mesh, etc.

According to the material, Hexagonal mesh from HuaGuang Co.,Ltd can be divided into electro-galvanized hexagonal wire mesh, hot-dip galvanized hexagonal wire mesh, black iron wire hexagonal wire mesh, PVC covered hexagonal wire mesh, stainless steel wire hexagonal wire mesh, purple copper hexagonal wire mesh, etc.

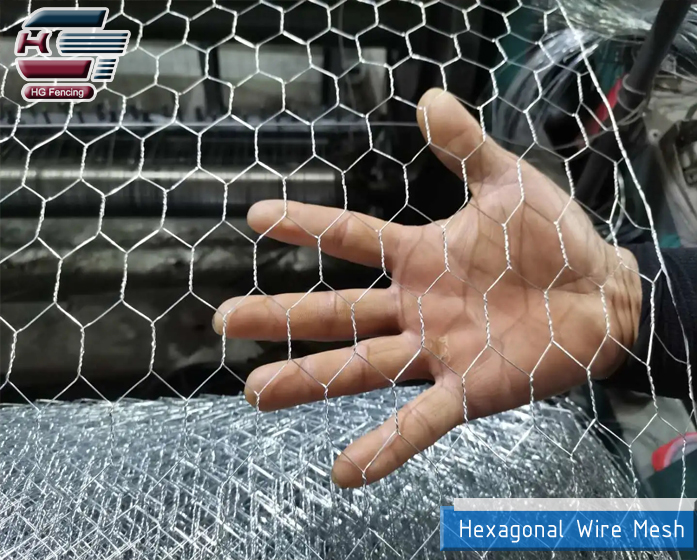

Galvanized hexagonal wire mesh is the more common type of hexagonal wire mesh (twisted wire mesh).

Galvanized hexagonal wire mesh is woven with high quality galvanized low carbon steel wire, the tensile strength of the wire is not less than 20kg/㎡, and the diameter of the wire can be 0.4mm-2.0mm.

Use: It is widely used in petrochemical industry, construction, breeding industry, etc. Such as construction wall fixing, floor coagulation plate reinforcement, heat preservation, heat insulation; power plant wrapping pipeline, boiler insulation, antifreeze, residential protection, gardening and green protection. It can also be used for fish farming, chicken, duck, rabbit and other animal fences.

Hot-dip galvanized hexagonal wire mesh is also divided into two types: woven hexagonal wire mesh and hot-dip galvanized wire woven hexagonal wire mesh. Woven hexagonal wire mesh is made of high quality low carbon steel wire, which is mechanically woven and then treated with hot dip galvanizing. It has a bright white color, thick zinc layer, uniform mesh, flat surface, strong tensile strength and high corrosion resistance.

Hot-dip galvanized woven hexagonal wire mesh is made of high quality hot-dip galvanized low carbon steel wire by mechanical weaving. It has uniform mesh holes, smooth mesh surface, good anti-corrosion and anti-oxidation characteristics.

Plastic coated hexagonal wire mesh, also known as PVC hexagonal wire mesh, is divided into woven hexagonal wire mesh and pvc wire woven hexagonal wire mesh.

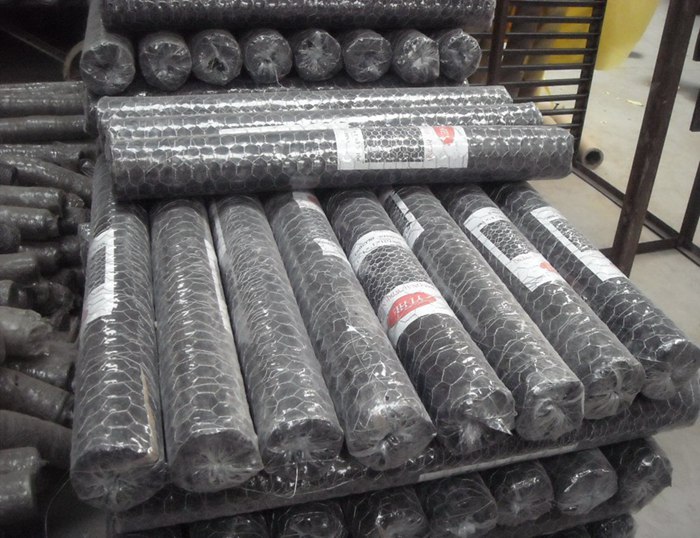

Woven hexagonal wire mesh is woven and then dipped hexagonal wire mesh is further processed after the finished rolls are woven ----- After the rolls are heated, a PVC protective layer (green, black, yellow, brown, etc.) is wrapped around the mesh, which will greatly increase the service life of the mesh, anti-UV, anti-aging weathering effect, and through the selection of different colors, it can be integrated with the surrounding natural environment.

pvc wire woven hexagonal mesh, using PVC (metal) wire with an outside diameter of 0.8mm to 2.6mm. Twisted into hexagonal shape, strong; not easy to deformation, with anti-aging, corrosion resistance, etc., long service life, the varieties and colors of this product, can be customized according to user needs; can withstand large tensile strength; easy to construction; easy to transport and storage.

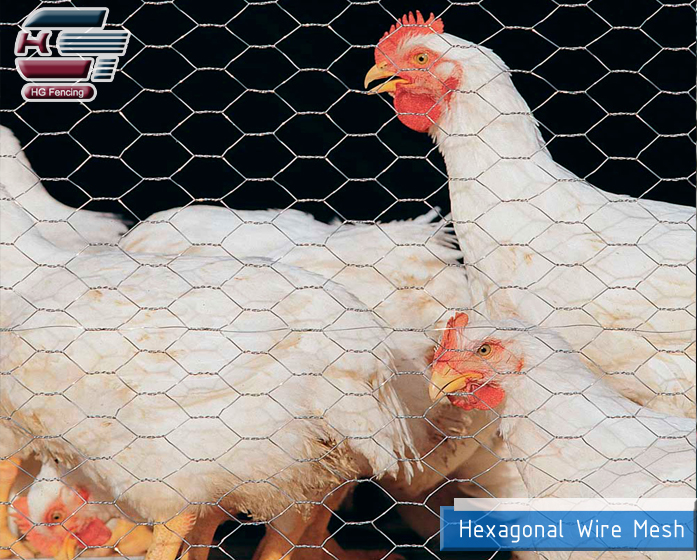

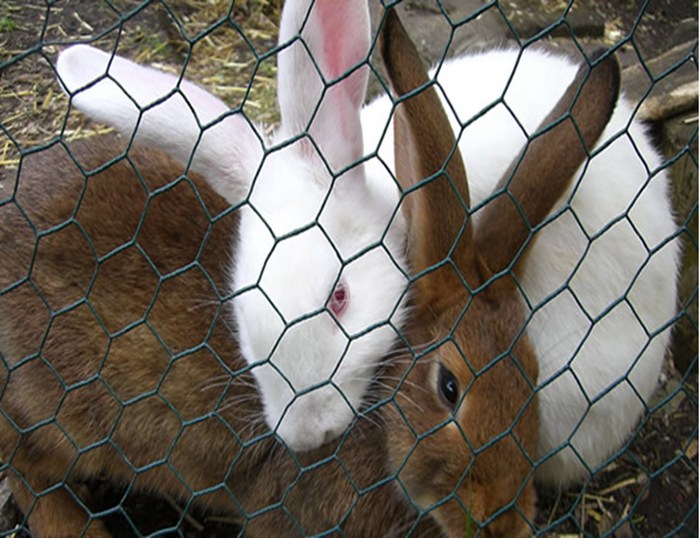

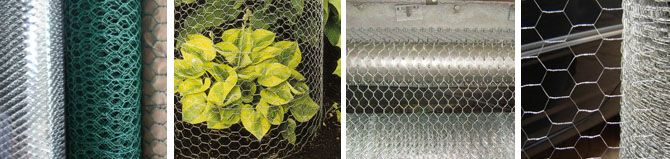

Plastic coated hexagonal wire mesh is widely used in residential protection, gardening protection, making isolation mesh wall, chicken and duck raising, isolating chicken and duck house, protecting poultry; also can be used for slope support, pit support, mountain rock face hanging mesh spraying, slope vegetation (greening), isolation barrier net, etc.
